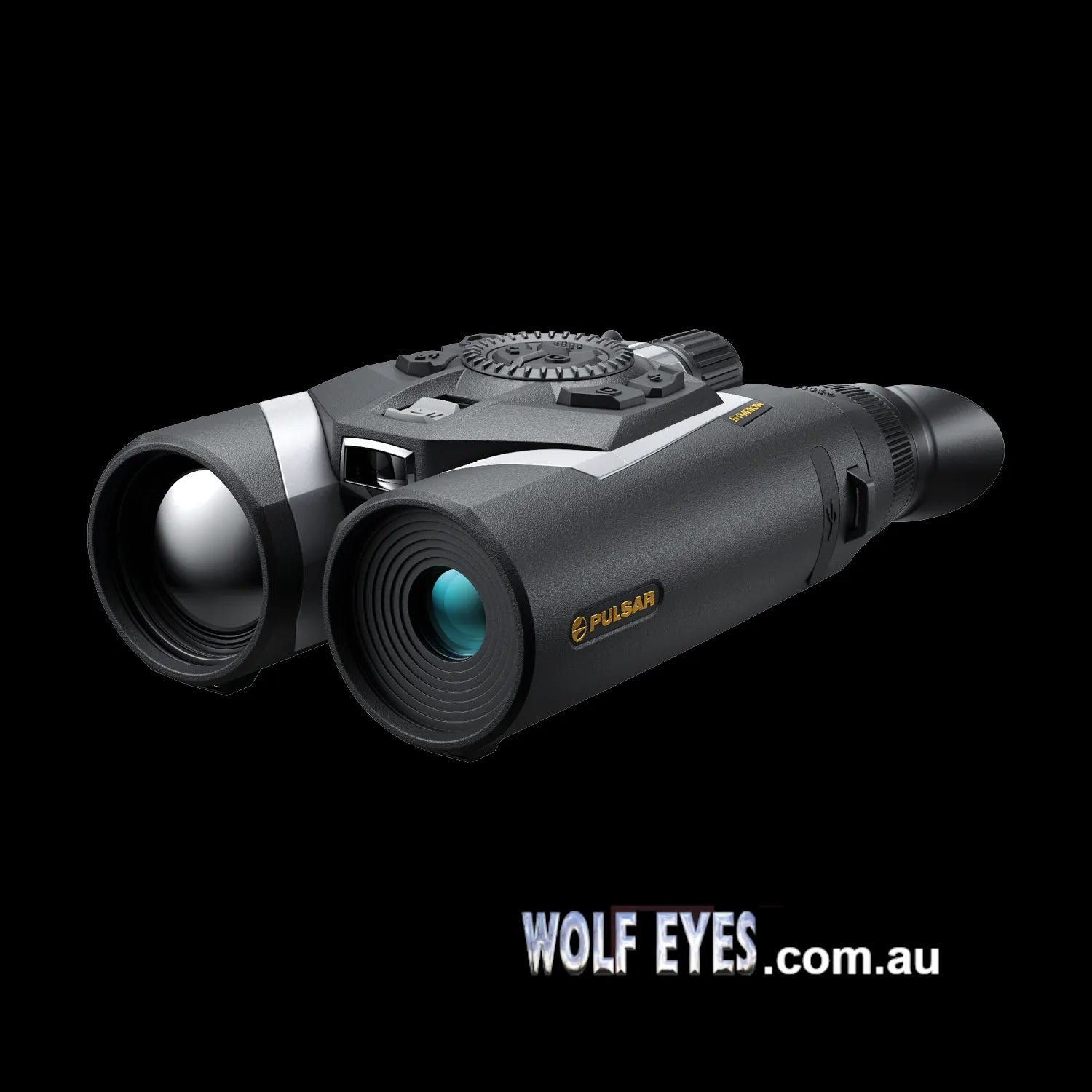

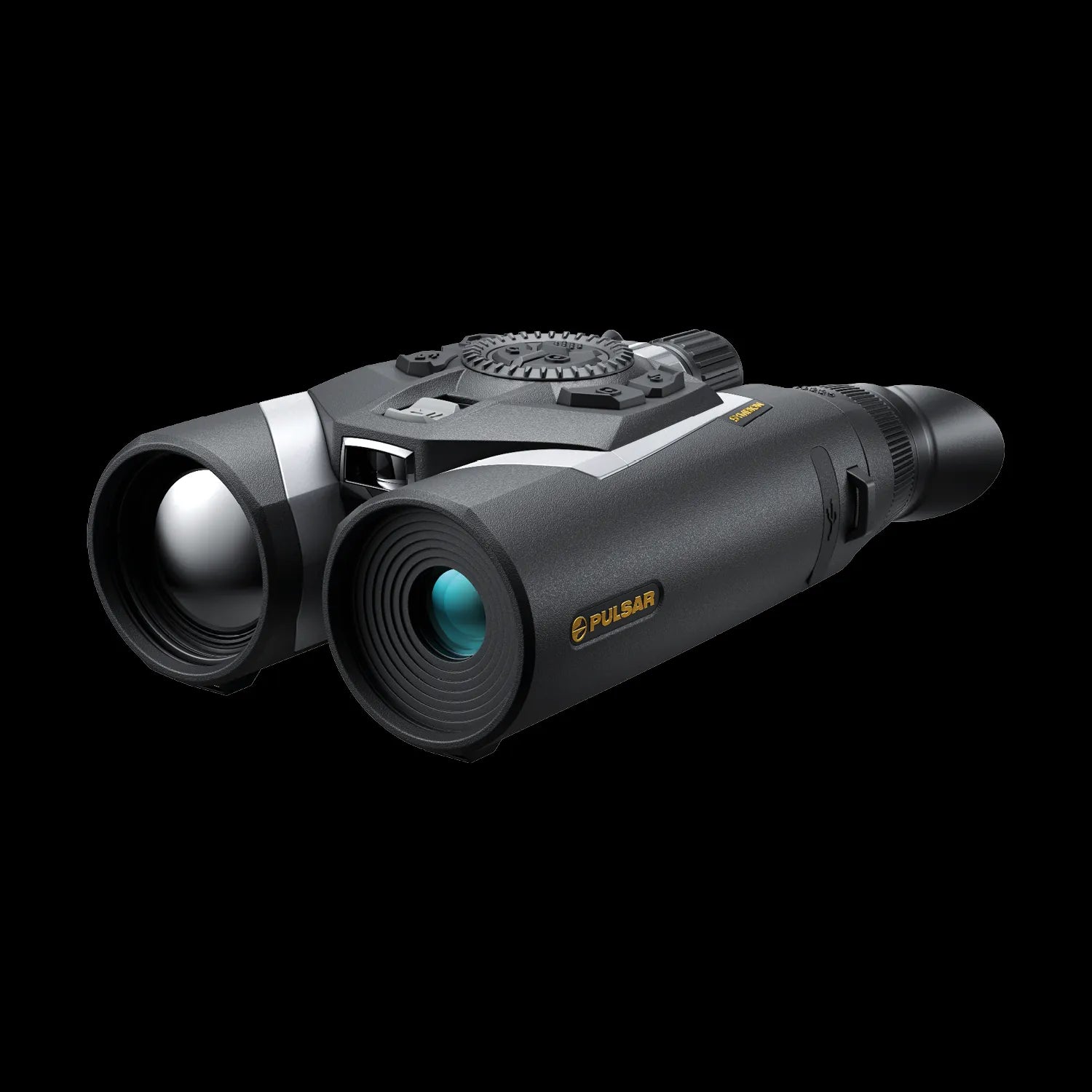

Experience uncompromising observation with the Pulsar Symbion LRF DTX50, a dual-channel multispectral system engineered for 24/7 performance. The premium 1280×1024 thermal sensor detects heat signatures through dense foliage up to 2300m, while the 4K digital channel delivers vibrant daytime imaging and crisp night vision with built-in IR illumination. Switch seamlessly between channels or use Picture-in-Picture for simultaneous dual viewing. The 50mm f1.0 germanium objective lens provides expansive fields of view (17.5° thermal / 5.8° digital) with magnification ranges of 2-16x and 6.5-26x respectively. Integrated laser rangefinder (±1m accuracy to 1500m), electronic image stabilisation, and nine adaptive colour palettes ensure steady, detailed observations in any condition. Ergonomic one-handed controls, rugged IP67-rated magnesium construction, and up to 8 hours of battery life keep you operational through extended field sessions. Capture and share moments with built-in 4K video recording and 64GB storage. Connect via Stream Vision 2 app for wireless remote control, file management, and firmware updates. Includes tripod mount for hands-free deployment.
| Thermal Sensor |
1280×1024, 12µm |
| Sensor NETD |
<40 mK |
| System NETD (sNETD) |
<20 mK |
| Objective Lens |
50mm f1.0 |
| Magnification |
2-16x (thermal channel) | 6.5-26x (digital channel) |
| FOV (Horizontal) |
17.5° (thermal channel) | 5.8° (digital channel) |
| FOV (m @ 100 m) |
30.7 m (thermal channel) | 10.2 m (digital channel) |
| Detection Range |
2300 m (thermal channel) |
| Digital Zoom |
2/4/8 (digital channel) |
| Frame Rate |
50 Hz |
| Dioptre Adjustment |
-5/+5 |
| Eye Relief |
13 mm |
| Display Type |
AMOLED |
| Display Resolution |
1920×1080 px |
| Image Capture/Video Recording |
Yes (w/ audio) |
| Built-in Memory |
64GB |
| USB |
USB Type-C |
| Wi-Fi |
Yes (2.4/5 Ghz) |
| Bluetooth |
Yes |
| Sensitivity Levels |
Normal/High/Ultra |
| Colour Palettes |
9 |
| Image Enhancement |
Smoothing filter |
| Sleep Mode |
Yes |
| Automatic Shut-off |
Yes |
| Mobile App(s) |
Stream Vision 2
Stream Vision Ballistics |
| Built-in LRF |
Yes |
| LRF Measuring Distance |
1500 m |
| LRF Measuring Accuracy |
±1 m |
| LRF Wavelength |
905 nm |
| Battery Type |
APS5 (x2 included) |
| Battery Life |
Up to 8 hours (depending on temp.) |
| External Power |
5V / 9V USB Type-C power delivery |
| Housing Material |
Magnesium alloy |
| Tripod Mount |
1/4″ |
| Operating Temperature Range |
-25 to + 50° |
| Level of Protection |
IP67 |
| Calibration |
Manual/Auto/Semi-auto |
| Dimension |
207x132x72.5 mm |
| Weight |
1000 g |
